DIN Rail Terminal Block High-Quality Brass Screw and Push-In Connectors
NaiHang DIN rail terminal blocks feature high-grade brass conductors with screw and push-in connections for reliable industrial wiring.
Product Overview: NaiHang DIN Rail Terminal Blocks
NaiHang offers a comprehensive range of DIN rail terminal blocks designed for robust electrical control panel wiring and industrial applications. Our products feature modular construction, suitable for standard 35mm top-hat rail mounting, ensuring seamless integration into conventional electrical cabinet components.
The NaiHang Advantage
- Premium Brass Wire Connectors: Manufactured using high-quality nickel-plated brass for excellent conductivity and corrosion resistance.
- Versatile Connection Technologies: Available in screw clamp, spring cage, and push-in wire connector styles to suit diverse wiring needs.
- Precision Engineering: Engineered for minimal voltage drop and reliable, long-term performance in demanding environments.
- Enhanced Safety & Durability: Polyamide PA66 housing materials ensure flame retardancy and mechanical strength.
Application Scope
Our DIN rail terminal blocks excel in:
- Electrical control panel wiring
- Industrial automation systems
- Renewable energy installations
- Electrical cabinet assemblies requiring multi-level terminal blocks and potential distributor blocks
Compatibility
- Fully compatible with IEC 60947-7-1 standards, ensuring global conformity and interchangeability.
- Designed for use with standard DIN rail 35mm, top-hat rail connectors, making installation swift and secure.
- Supports a broad range of wire sizes and types, including grounding terminal blocks (PE) for enhanced safety grounding.
NaiHang’s terminal strip assembly solutions provide reliable, high-quality connectivity that engineers trust worldwide.
Technical Specifications & Performance Data
Our din rail terminal block lineup is designed for reliability and ease of use in electrical control panel wiring. Here’s a quick overview of their core specs:
| Feature | Details |
|---|---|
| Electrical Ratings | Rated voltage up to 800V, current up to 76A |
| Connection Capacity | Supports wire sizes from 0.2 to 35 mm² |
| Material Composition | Flame-retardant polyamide housing with brass wire connector block |
| Mounting Type | DIN rail 35mm top-hat rail mount |
These terminal blocks include screw connection terminal, spring cage terminal block, and push-in wire connectors, suitable for various wiring needs. Whether you are looking for feed-through terminal blocks or grounding terminal blocks (PE), they fit modular terminal block setups in multi-level terminal block designs.
For high-capacity wiring needs, consider our potential distributor block and four-phase distribution blocks which offer robust performance under demanding conditions.
This tailored design ensures secure and stable connections across all major electrical cabinet components.
Connection Technologies Available: Screw Clamp, Spring Clamp & Push-In
When it comes to DIN rail terminal blocks, the choice of connection technology is crucial for reliability and ease of use. Here are the main types we offer:
Screw Clamp Connection
This traditional method uses a screw to securely fasten the wire. It’s widely trusted for solid contact and great for applications where vibration isn’t a big concern. Our screw connection terminal options include durable brass wire connector blocks to ensure steady electrical control panel wiring and long-term stability.
Spring Clamp / Cage Clamp
Spring cage terminals offer a vibration-resistant, maintenance-free connection. Instead of screws, they use a spring mechanism to hold wires firmly. This technology simplifies assembly with quicker wire insertion and release, perfect for fast installation on 35mm top-hat rails and modular terminal block setups.
Push-In Technology
Push-in wire connectors allow wires to be directly plugged in without any tools, speeding up wiring significantly. These are ideal for feed-through terminal blocks where ease and speed matter most. They maintain excellent contact and pull-out strength, offering a modern approach to the DIN rail mount connector.
Each technology suits different setups from multi-level terminal blocks to potential distributor blocks, ensuring you get the right fit for your electrical cabinet components.
For robust screw clamp solutions, take a look at our SV-35 Hex Screw Single Phase Connection Block.
Essential Accessories for Cabinet Assembly
When setting up your electrical cabinet with DIN rail terminal blocks, having the right accessories is crucial for a tidy, safe, and efficient installation.
- End Brackets / End Stops These keep your terminal strips firmly in place on the 35mm top-hat rail, preventing any movement caused by vibration or handling. They ensure the stability of the entire terminal block assembly during operation.
- Jumper Bars / Cross Connectors Easily link multiple points within a terminal strip using jumper bars. This is especially useful for potential distributor blocks or multi-level terminal blocks, allowing quick distribution of power or signals without extra wiring. Check out our range of jumper bars designed to fit screw connection terminals perfectly.
- End Covers & Partition Plates For added safety and neatness, end covers protect the terminal block ends, preventing accidental contact. Partition plates separate different circuits within the terminal strip, reducing electrical noise and improving isolation in complex electrical control panel wiring.
- Marking Strips & Labeling Clear identification is vital. Marking strips and labeling solutions help label each terminal or wire clearly, which simplifies troubleshooting and maintenance down the line. Use marking systems compatible with your terminal block series to keep everything organized.
Together, these accessories complement modular terminal blocks, whether you’re utilizing screw clamp, spring cage, or push-in wire connection technologies. They help maintain a professional, reliable electrical cabinet assembly every time.
For more on grounding bar accessories, see our detailed configurations for the NHA27-E screw terminal grounding bar with cover.

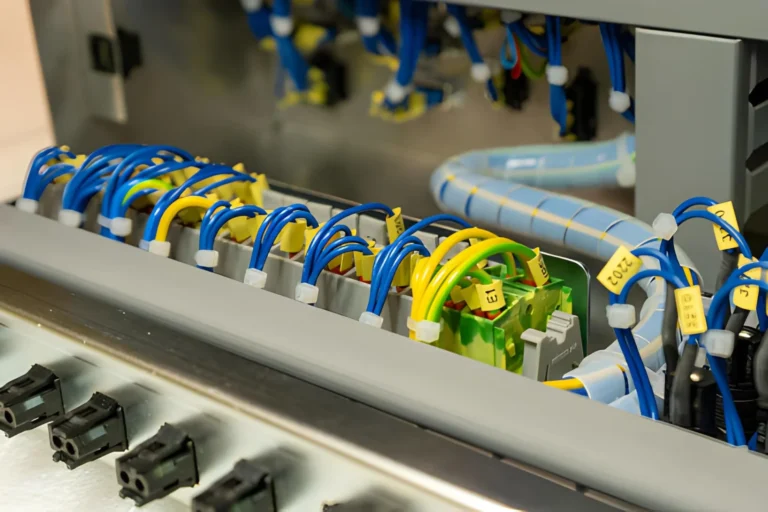

Installation & Wiring Guidelines for Din Rail Terminal Block
Getting your DIN rail terminal block installed properly is key to ensuring reliable electrical control panel wiring. Here’s a simple step-by-step guide to help you:
Step-by-step Installation
- Mount the DIN rail: Secure your 35mm top-hat rail firmly inside the electrical cabinet or control panel.
- Snap on the terminal blocks: Slide each modular terminal block onto the DIN rail. Ensure they click into place without gaps.
- Arrange accessories: Add end brackets, jumper bars, or marking strips where needed to organize and maintain the terminal strip assembly.
- Connect wiring: Insert stripped wires into the appropriate terminal points based on your circuit design.
Wire Stripping Length
- Strip the wire insulation to the manufacturer’s recommended length, typically around 8-12 mm for screw clamp and spring cage terminal blocks.
- Avoid over-stripping to prevent exposed wire beyond the connector, which can cause short circuits.
- For push-in wire connectors, confirm the wire is stripped cleanly without any nick or damage to ensure a solid connection.
Proper Torque Application
- Use a calibrated screwdriver or torque driver to tighten screw connections to the specified torque value.
- Over-tightening can damage the brass wire connector block or terminal strip, while under-tightening might cause poor contact or overheating.
- Refer to the manufacturer’s torque specs, generally between 0.5 to 0.6 Nm for screw clamp terminals.
- For spring cage or push-in types, verify locking mechanisms firmly hold the wire without excessive force.
By following these simple installation and wiring guidelines, you ensure that your screw connection terminal or spring cage terminal block functions safely and efficiently in your electrical cabinet components.
For more details on terminal block assembly accessories and options, check out our range of NaiHang modular terminal blocks and accessories designed for ease of installation and reliable performance.
Why Choose NaiHang Terminal Blocks?
Choosing NaiHang terminal blocks means opting for quality, reliability, and flexibility straight from the direct manufacturer. We offer competitive pricing and fast delivery, cutting the extra costs middlemen add. Our modular DIN rail 35mm terminal blocks come with solid brass wire connectors, ensuring excellent conductivity and long-lasting durability.
Customization Options
We understand that every electrical control panel wiring project is unique. That’s why NaiHang provides:
- Tailored configurations for screw connection terminal, spring cage terminal block, or push-in wire connector styles
- Custom jumper bars and multi-level terminal block assemblies
- Special markings and labeling strips per your specifications
You can get exactly the DIN rail mount connector solution that fits your electrical cabinet components perfectly.
Global Standards Compliance
NaiHang terminal blocks are built to meet strict international standards, including:
| Standard | Compliance Details |
|---|---|
| IEC 60947-7-1 | Safety and performance for terminal blocks |
| RoHS | Environmentally friendly materials |
| UL Certification | Meets North American electrical safety |
This ensures our feed-through terminal blocks and potential distributor blocks work flawlessly across global markets.
Discover the full range of reliable, modular terminal blocks and accessories on our dedicated DIN rail terminal blocks page.
Frequently Asked Questions (FAQ)
What are the recommended torque requirements for DIN rail terminal blocks?
Proper torque ensures secure electrical connections and prevents damage:
| Connection Type | Torque Range (Nm) |
|---|---|
| Screw Clamp Connection | 0.5 – 0.6 |
| Spring Clamp / Cage Clamp | Typically tool-free |
| Push-In Technology | Tool-free, no torque |
Always use a calibrated torque screwdriver for consistency, especially with screw connection terminal blocks.
Are these terminal blocks compatible with standard marking systems?
Yes, our modular terminal blocks support a variety of marking strips and labeling methods to fit IEC and global standards. They work seamlessly with common marking systems, allowing clear identification and easy maintenance.
We offer accessories like marking strips and labeling options that integrate well with your electrical control panel wiring setup.
Can custom jumper bar configurations be provided?
Absolutely. Custom jumper bars or cross connectors can be tailored to your specific multi-level terminal block layouts or potential distributor block setups. This flexibility helps optimize electrical cabinet components and streamline feed-through terminal block connections.
For example, you can customize length, number of poles, and connection styles according to your electrical installation needs.
For more about grounding terminal block options and accessories, take a look at our e-grounding bar with full plastic cover or explore neutral bar solutions like our screw terminal neutral bar with cover to complete your terminal strip assembly.
How to request a quote or datasheet
- Share your project details, connection preferences, and required terminal block type.
- Specify if you need modular terminal blocks, multi-level types, or potential distributor blocks.
- Ask about compatibility with IEC 60947-7-1 standards or particular electrical cabinet components.
For example, if you’re interested in a multi-phase distribution block, we offer products like our four-phase distribution block that might fit your setup.
Contact us directly for personalized support on your DIN rail mount connector needs, ensuring you get the right electrical control panel wiring solution that fits your application.
