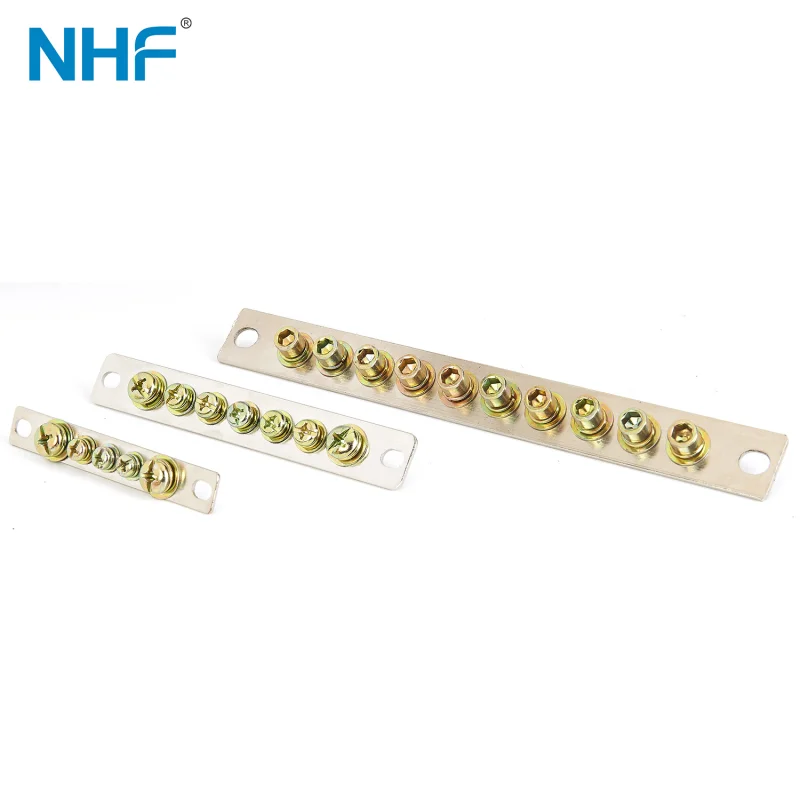

Product Description
Brass (Nickel-Plated Surface),Steel Screw Galvanized
Note: Our Company Also Can Provide Customized Solutions With Varying
Lengths, Widths, Hole Diameters,
And Numbers According to Customer Requirements.Welcome to Customize.
Product Parameter
| Model | Ways | Spe.(mm) | L1(mm) | H(mm) | W(mm) | L2 Installation Size (mm) | Screw Size (mm) |
| D01/3-0215 | 3 | 1.5*15 | 68 | 2 | 15 | 58 | M6*3 |
| D01/5-0215 | 5 | 1.5*15 | 93 | 2 | 15 | 82 | M5*3(M8*2) |
| D01/7-0215 | 7 | 1.5*15 | 116 | 2 | 15 | 104 | M5*5(M8*2) |
| D01/10-0215 | 10 | 1.5*15 | 149 | 2 | 15 | 137 | M5*8(M8*2) |
| D01/5-0220 | 5 | 2*20 | 107 | 2 | 20 | 94 | M6*3(M8*2) |
| D01/7-0220 | 7 | 2*20 | 135 | 2 | 20 | 122 | M6*5(M8*2) |
| D01/8-0220 | 8 | 2*20 | 149 | 2 | 20 | 136 | M6*6(M8*2) |
| D01/10-0220 | 10 | 2*20 | 177 | 2 | 20 | 163 | M6*8(M8*2) |
| D01/12-0220 | 12 | 2*20 | 205 | 2 | 20 | 191 | M6*10(M8*2) |
| D01/15-0220 | 15 | 2*20 | 247 | 2 | 20 | 233 | M6*13(M8*2) |
| D01/5-0325 | 5 | 3*25 | 117 | 3 | 25 | 103 | M8*5 |
| D01/7-0325 | 7 | 3*25 | 152 | 3 | 25 | 138 | M8*7 |
| D01/10-0325 | 10 | 3*25 | 208 | 3 | 25 | 192 | M8*10 |
