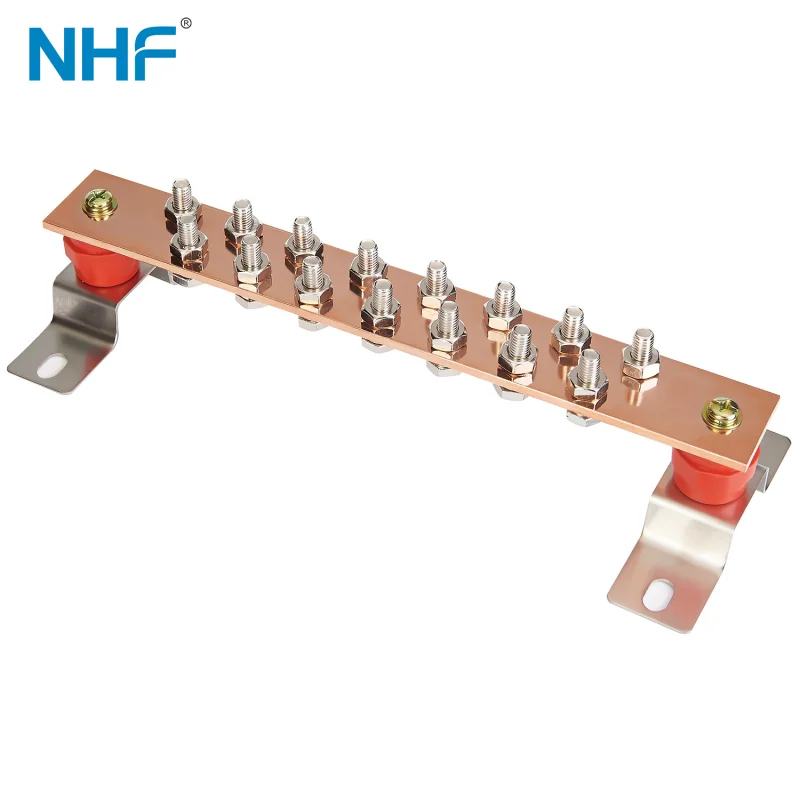

D08 Pure Copper Double Row Neutral Bar With Insulator
D08 Pure Copper Double Row Neutral Bar with insulator, high conductivity, and brass-plated options. Corrosion-resistant, multi-hole design, secure installation, customizable sizes, ideal for electrical distribution systems.
Product Description
1.Pure Copper
2..Brass Plated Copper
Steel Screw Galvanized
Note: Our Company Also Can Provide Customized Solutions With Varying
Lengths, Widths, Hole Diameters,
And Numbers According to Customer Requirements.Welcome to Customize.
Product Parameter

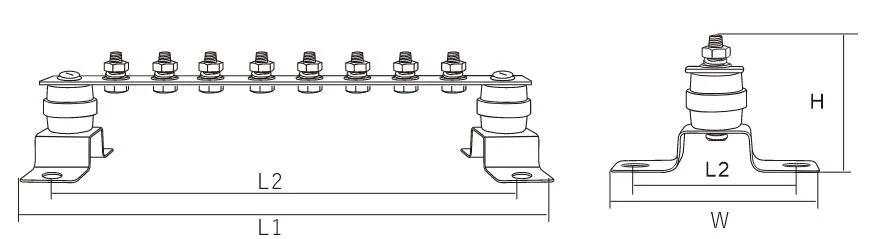

| Model | Ways | Spe.(mm) | L1(mm) | H(mm) | W(mm) | L2 Installation Size (mm) | Screw Size (mm) |
| D08/8-0330 | 12 | 3*40 | 305 | 3 | 110 | 87/270 | M8*12 |
| D08/10-0330 | 14 | 3*40 | 340 | 3 | 110 | 87/305 | M8*14 |
| D08/12-0330 | 16 | 3*40 | 375 | 3 | 110 | 87/340 | M8*16 |
| D08/12-0330 | 18 | 3*40 | 415 | 3 | 110 | 87/380 | M8*18 |
| D08/12-0330 | 20 | 3*40 | 450 | 3 | 110 | 87/415 | M8*20 |
| D08/12-0330 | 22 | 3*40 | 485 | 3 | 110 | 87/450 | M8*22 |
| D08/12-0330 | 20 | 4*100 | 305 | 3 | 110 | 87/450 | M8*20 |
