Product Description

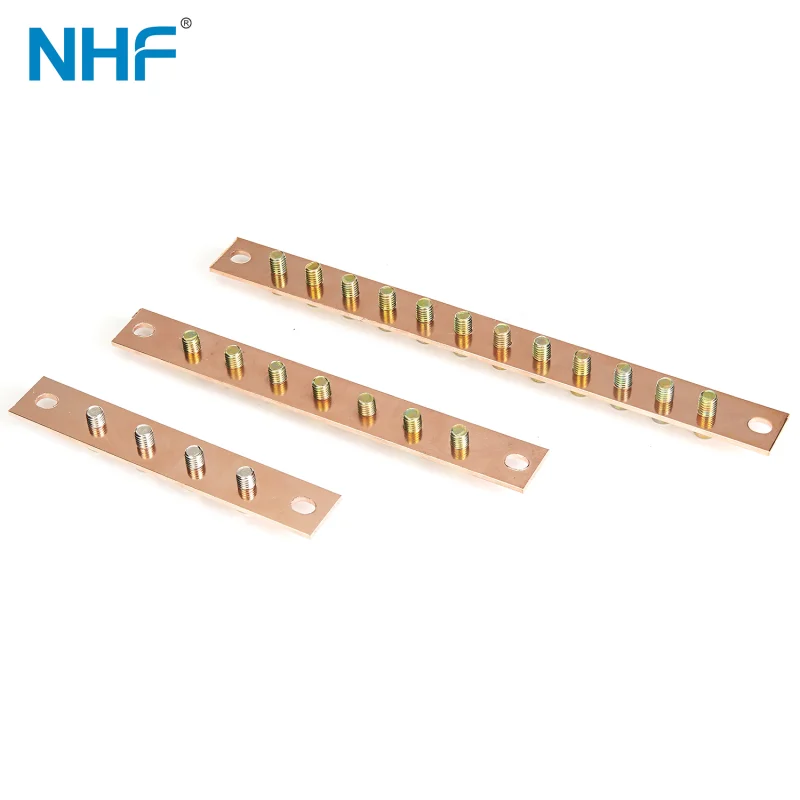

1.Pure Copper
2..Brass Plated Copper
Steel Screw Galvanized
Note: Our Company Also Can Provide Customized Solutions With Varying
Lengths, Widths, Hole Diameters,
And Numbers According to Customer Requirements.Welcome to Customize.
Product Parameter
| Model | Ways | Spe.(mm) | L1(mm) | H(mm) | W(mm) | L2 Installation Size (mm) | Screw Size (mm) |
| D06/4-0325 | 4 | 3*25 | 117 | 3 | 25 | 98 | M8*4 |
| D06/5-0325 | 5 | 3*25 | 136 | 3 | 25 | 117 | M8*5 |
| D06/6-0325 | 6 | 3*25 | 155 | 3 | 25 | 136 | M8*6 |
| D06/7-0325 | 7 | 3*25 | 174 | 3 | 25 | 155 | M8*7 |
| D06/8-0325 | 8 | 3*25 | 193 | 3 | 25 | 174 | M8*8 |
| D06/10-0325 | 10 | 3*25 | 231 | 3 | 25 | 212 | M8*10 |
| D06/12-0325 | 12 | 3*25 | 270 | 3 | 25 | 254 | M8*12 |
| D06/4-0325 | 4 | 3*25 | 136 | 3 | 25 | 118 | M8*4 |
| D06/5-0325 | 5 | 3*25 | 158 | 3 | 25 | 140 | M8*5 |
| D06/6-0325 | 6 | 3*25 | 180 | 3 | 25 | 162 | M8*6 |
| D06/7-0325 | 7 | 3*25 | 202 | 3 | 25 | 184 | M8*7 |
| D06/8-0325 | 8 | 3*25 | 224 | 3 | 25 | 206 | M8*8 |
| D06/10-0325 | 10 | 3*25 | 268 | 3 | 25 | 250 | M8*10 |
| D06/12-0325 | 12 | 3*25 | 312 | 3 | 25 | 294 | M8*12 |
| D06/4-0325 | 4 | 3*25 | 150 | 3 | 25 | 128 | M8*4 |
| D06/5-0325 | 5 | 3*25 | 175 | 3 | 25 | 153 | M8*5 |
| D06/6-0325 | 6 | 3*25 | 200 | 3 | 25 | 178 | M8*6 |
| D06/7-0325 | 7 | 3*25 | 225 | 3 | 25 | 203 | M8*7 |
| D06/7-0325 | 7 | 3*25 | 300 | 3 | 25 | 279 | M8*7 |
| D06/8-0325 | 8 | 3*25 | 250 | 3 | 25 | 228 | M8*8 |
| D06/10-0325 | 10 | 3*25 | 300 | 3 | 25 | 278 | M8*10 |
| D06/12-0325 | 12 | 3*25 | 350 | 3 | 25 | 338 | M8*12 |
