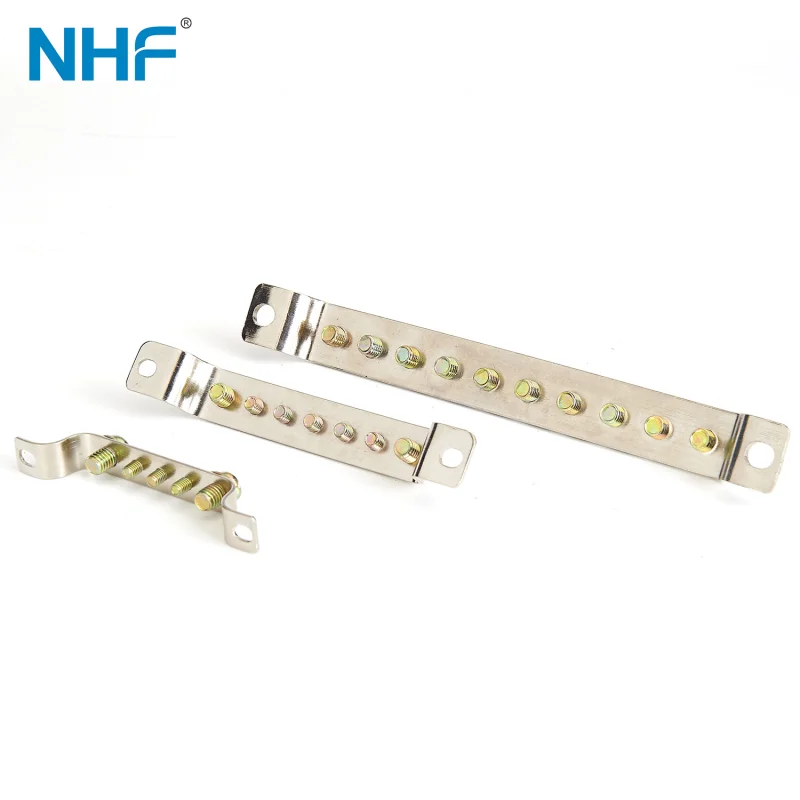

D02 Brass Bridge Type Grounding Bar 3-15 Holes
Brass Bridge Type Grounding Bar D02 with nickel-plated surface and galvanized screws, 3–15 holes. Corrosion-resistant, high conductivity, customizable sizes, ideal for grounding systems.
Product Description
Brass (Nickel-Plated Surface),Steel Screw Galvanized
Note: Our Company Also Can Provide Customized Solutions With Varying
Lengths, Widths, Hole Diameters,
And Numbers According to Customer Requirements.Welcome to Customize.
Product Parameter
| Model | Ways | Spe.(mm) | L1(mm) | H(mm) | W(mm) | L2 Installation Size (mm) | Screw Size (mm) |
| D02/3-0215 | 3 | 1.5*15 | 83 | 2 | 15 | 73 | M6*3 |
| D02/5-0215 | 5 | 1.5*15 | 108 | 2 | 15 | 97 | M5*3(M8*2) |
| D02/7-0215 | 7 | 1.5*15 | 133 | 2 | 15 | 120 | M5*5(M8*2) |
| D02/10-0215 | 10 | 1.5*15 | 165 | 2 | 15 | 153 | M5*8(M8*2) |
| D02/5-0220 | 5 | 2*20 | 119 | 2 | 20 | 106 | M6*3(M8*2) |
| D02/7-0220 | 7 | 2*20 | 145 | 2 | 20 | 132 | M6*5(M8*2) |
| D02/8-0220 | 8 | 2*20 | 158 | 2 | 20 | 145 | M6*6(M8*2) |
| D02/10-0220 | 10 | 2*20 | 185 | 2 | 20 | 173 | M6*8(M8*2) |
| D02/12-0220 | 12 | 2*20 | 212 | 2 | 20 | 200 | M6*10(M8*2) |
| D02/15-0220 | 15 | 2*20 | 252 | 2 | 20 | 240 | M6*13(M8*2) |
| D02/5-0325 | 5 | 3*25 | 137 | 3 | 25 | 121 | M8*5 |
| D02/7-0325 | 7 | 3*25 | 175 | 3 | 25 | 157 | M8*7 |
| D02/10-0325 | 10 | 3*25 | 22 | 3 | 25 | 210 | M8*10 |
