DIN Rail Terminal Blocks are essential components for organizing, connecting, and protecting wiring in modern electrical and industrial control systems.

By understanding their structure, types, and correct wiring methods, engineers and technicians can build safer, more reliable, and easier-to-maintain installations.

What are DIN Rail Terminal Blocks?

A DIN rail is a standardized metal strip used to mount electrical and industrial control devices inside cabinets or racks. It serves only as a physical support. It does not conduct electricity or create connections.

The term “DIN” comes from Deutsche Institut für Normung, the German standards body. This mounting method began in Germany in the 1920s. By the 1950s, it had spread across Europe and soon became a global standard.

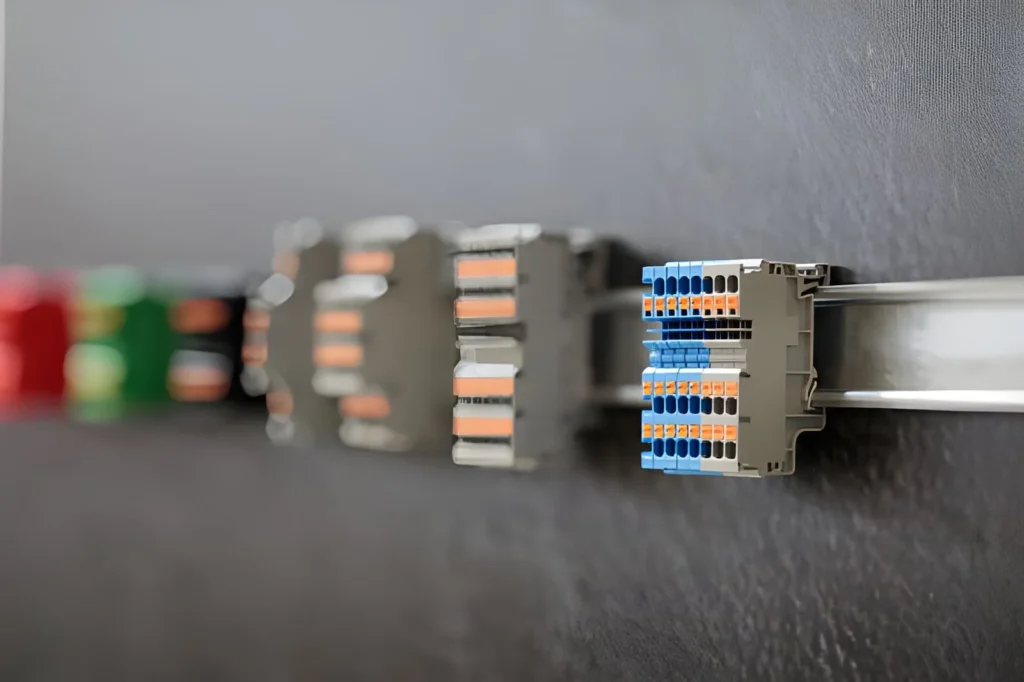

DIN rail terminal blocks are components fixed onto these rails. Their main role is protection. They help prevent short circuits and limit excess current between connected wires. Most are made from plastic or other insulating materials.

These blocks also act as connection points. They link wiring from one device to the input and output of another, forming a complete circuit. In doing so, they create a safe and organized interface between different parts of a system.

You’ll find them in control cabinets and industrial setups where many devices must work together. Common uses include telecommunications, HVAC systems, power supplies, lighting control, building management, energy systems, and vehicle electronics.

Terminal blocks—also called terminal strips or connection blocks—are not the only devices mounted on DIN rails. Other components, such as relays, circuit breakers, actuators, and power supplies, are often installed alongside them to build a complete control system.

What are DIN Rail Terminal Blocks Used for?

DIN rail terminal blocks are used to connect electrical wiring between different pieces of equipment. They let engineers and electricians link wires from one device to another, forming a complete and stable circuit.

They also play a protective role. By organizing connections and insulating contact points, they help reduce the risk of short circuits and electrical faults. This makes them essential in systems where many components work together.

You will commonly find them inside electrical cabinets and industrial assemblies. In these settings, they support both safe wiring and efficient system layout.

They are widely used across many industries, including:

• Telecommunications equipment
• Building management systems that monitor and control facilities
• Energy control and efficiency systems
• Heating and air conditioning units
• Power supply setups
• Lighting control systems
• Automation, control, and signaling systems
• Vehicle electronics

What are DIN Rail Terminal Connectors?

Electrical connectors are devices that join conductors to other components, power sources, or equipment, allowing current to flow and a circuit to form. They come in many designs, so choosing the right type is important to prevent damage or safety risks.

Terminal blocks are among the most common connectors used in industrial settings. In their simplest form, they connect one wire to one circuit, creating a single-pole link. More advanced DIN rail connectors can support additional levels, enabling multiple parallel connections. These are often separated by barriers, which is why they are sometimes called barrier terminals. Larger versions may include several connection points arranged in rows.

DIN rail terminal block connectors create stable, semi-permanent connections. At the same time, they allow for easy maintenance. Wires can be adjusted, replaced, or repaired without much difficulty, making them practical for systems that need regular changes or upgrades.

DIN Rail Terminal Block Types

DIN rail terminal blocks come in many designs to suit different tasks. Their small size makes them flexible and easy to install, even where space is tight. For very compact setups, miniature and micro versions are available.

Some models include built-in fuses for added protection. These are useful for sensitive devices such as sensors and relays. The fuse breaks the circuit if the current becomes too high, and many designs include an LED indicator to show when it has blown. These are often called fuse terminal blocks. In some cases, color markings are used to show different current ratings.

Another way to classify them is by levels. A single-level block connects one wire path. A dual-level version adds a second connection stacked above the first, doubling capacity without taking extra space. There are also triple and four-level options, as well as more advanced designs with eight or even sixteen levels for high-density wiring.

They can also be grouped by how wires are connected. Screw terminal blocks are widely used and rely on a screw clamp to hold wires firmly in place. Some versions use spring-loaded clamps to improve stability, especially in environments with vibration. Ring or push-in terminal blocks allow faster installation, as wires can be inserted directly without loosening screws. These are usually compact and often support multiple connection levels.

Earth terminal blocks are designed for grounding. They connect wiring directly to the ground to safely discharge excess electrical energy. These blocks are easy to identify by their green and yellow casing and are typically secured using screws or clamps.

DIN Rail Terminal Block Sizes

DIN rail terminal blocks are designed to fit different cable sizes. To choose the right one, you need to understand how cable size is measured.

There are two common methods. One is diameter, which can refer either to the full width of the cable (including insulation) or just the inner conductor. The other is cross-sectional area (CSA). This shows the total size of the wire’s cross-section and is usually expressed in square millimeters (mm²).

CSA is not the same as diameter. It gives a more accurate idea of how much current the wire can carry.

When selecting a terminal block, make sure it matches the size of the cable. A proper fit ensures a secure connection and helps maintain safe, reliable performance.

How to Use a Terminal Block Connector

To use a terminal block connector, first attach it to the DIN rail. Clip the chosen, compatible connector onto the rail, then secure the rail assembly to the equipment panel or enclosure. Finally, connect the required wires to the terminals. DIN rail terminal blocks are designed for fast, straightforward mounting on the rail.

If the block is placed at the end of a row, you can fit an end plate to the open side to cover and protect it. You can also use an unconnected terminal block to close off the row. In all cases, the end block or end stop should lock firmly onto the rail so that the blocks cannot slide along it.

How to Wire DIN Rail Terminal Blocks

For standard screw-type DIN rail terminal blocks:

1. Switch off and isolate the equipment.
2. Strip about an inch of insulation from the end of each cable.
3. Loosen the clamping screw on the terminal entry, insert the bare conductor fully, then tighten the screw firmly. A loose screw can cause overheating and melt the insulation.
4. Note that slots may be on the top, front, or side, and the number of slots depends on the block design.
5. Repeat for each wire that needs to be connected.
6. Clip the wired terminal block onto the DIN rail.​

If your block uses spring or clamp connections instead of screws, press or lever the spring open with the supplied tool, insert the stripped conductor, and release the spring to lock the wire in place.

For plug-in terminal blocks:

1. Position the terminal block where you want it.
2. Plug the wires from your equipment into the block, matching male and female terminals.
3. Tug each wire lightly to confirm the connection is secure.​​

For ring terminal blocks:

1. Place the wire’s ring terminal over the stud or post.
2. Close the self-locking safety wing, if provided.
3. Tighten the nut so the ring is firmly clamped in place.​
