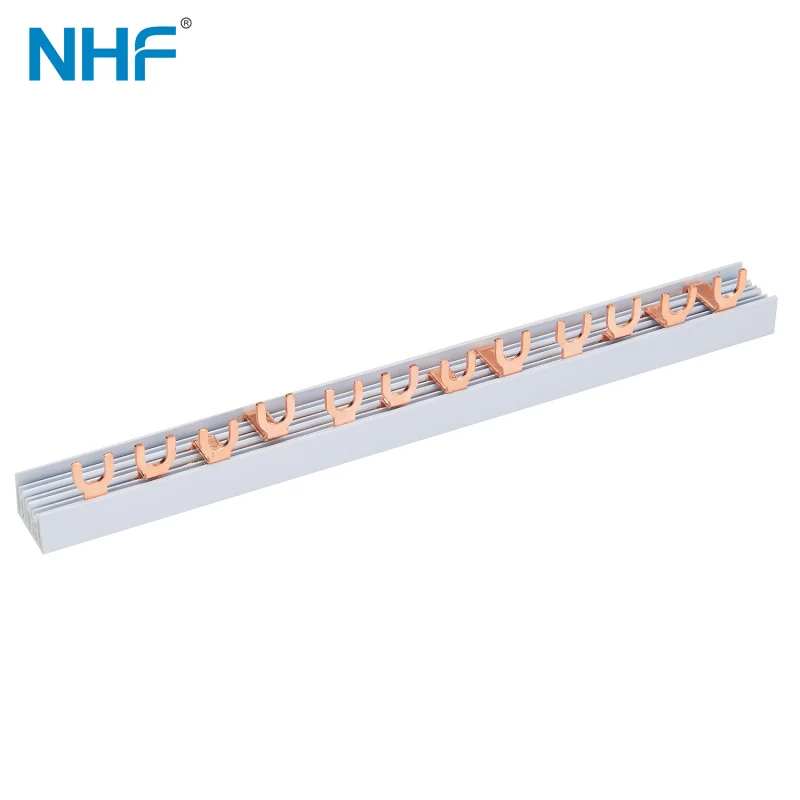

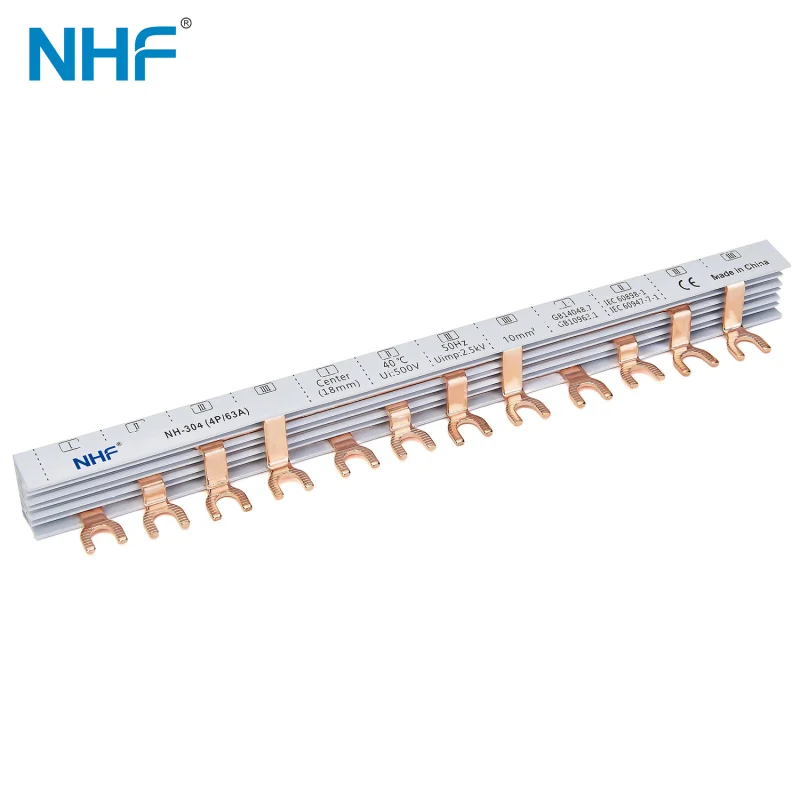

Pin Type 4-Phase Busbar
Pin Type 4-Phase Busbar for MCB with wide contact area, low power loss, and reduced heat rise. Supports 32–125A, ensures stable 4-phase distribution, easy installation, ideal for low-voltage electrical systems.
Product Description
The Present of Busbar Changed The Outdated Connection Ways of Miniature Circuit Breaker (MCB) to a New Connection Way With TheCharacteristics of Wider Contact Area, Low Power Consumption And Low Temperature-rise.
Our Company Produces Almost All Kinds of Busbars For MCB, Which Have Good Versatility And Practibility. It Has Advantages of Security And convenience to Install And Widely Used in Construction Electrical Devices Such as Low-Voltage Power Box,Distribution Box,illuminated_Box_And so on.
Product Parameter
Pin Type,4-Phase Busbar 32A 40A 63A 80A 100A 125A
| Model | Carrying Current | Thickness | Sectional Area | Pole | A(mm) Length | B(mm) Tooth Pitch | C(mm) Tooth Width | D(mm) Tooth High |
| H-304/4P-56 | 32A | 1.0 | 5mm² | 54 | 1020 | 18 | 4 | 12 |
| H-304/4P-56 | 40A | 1.2 | 6mm² | 54 | 1020 | 18 | 4 | 12 |
| H-304/4P-56 | 63A | 1.4 | 10mm² | 54 | 1020 | 18 | 4 | 12 |
| H-304/4P-56 | 80A | 1.7 | 15.5mm² | 54 | 1020 | 18 | 4 | 12 |
| H-304/4P-56 | 100A | 1.8 | 16.5mm² | 54 | 1020 | 18 | 4 | 12 |
| H-304/4P-56 | 125A | 2.0 | 18mm² | 54 | 1020 | 18 | 4 | 12 |
