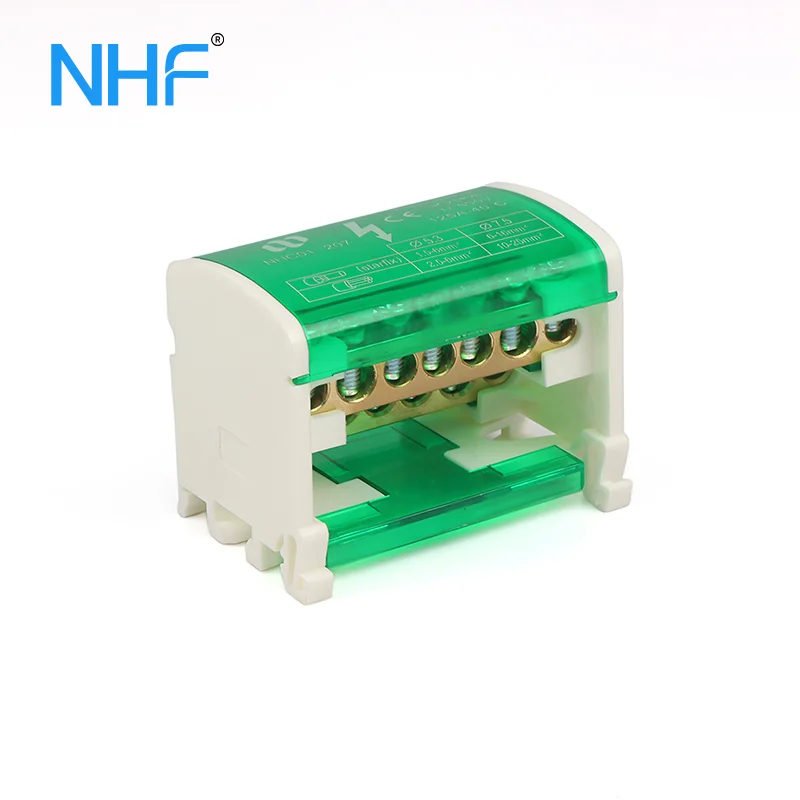

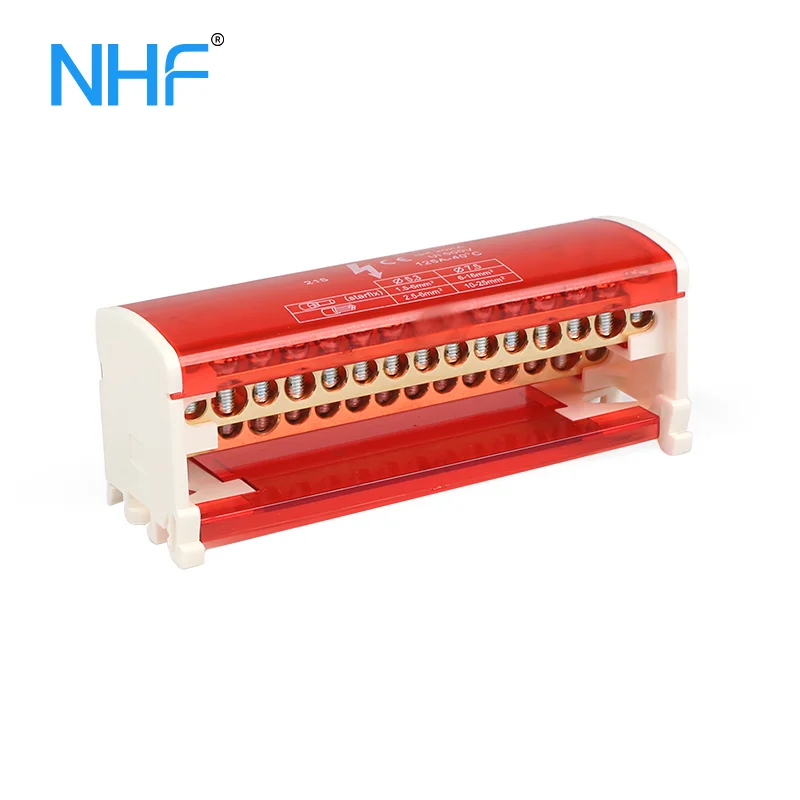

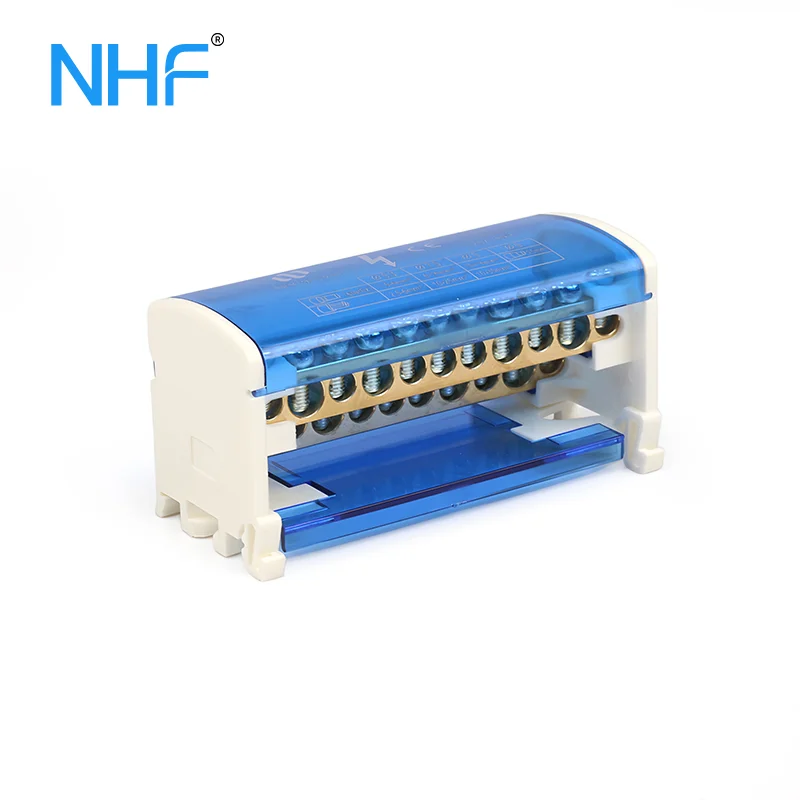

Naihang Electric supplies a CE/ROHS compliant Two Phase Connection Block rated 500V, 125A, IEC 60947-7-1, with PA66 housing PC cover and 35mm DIN rail mounting.

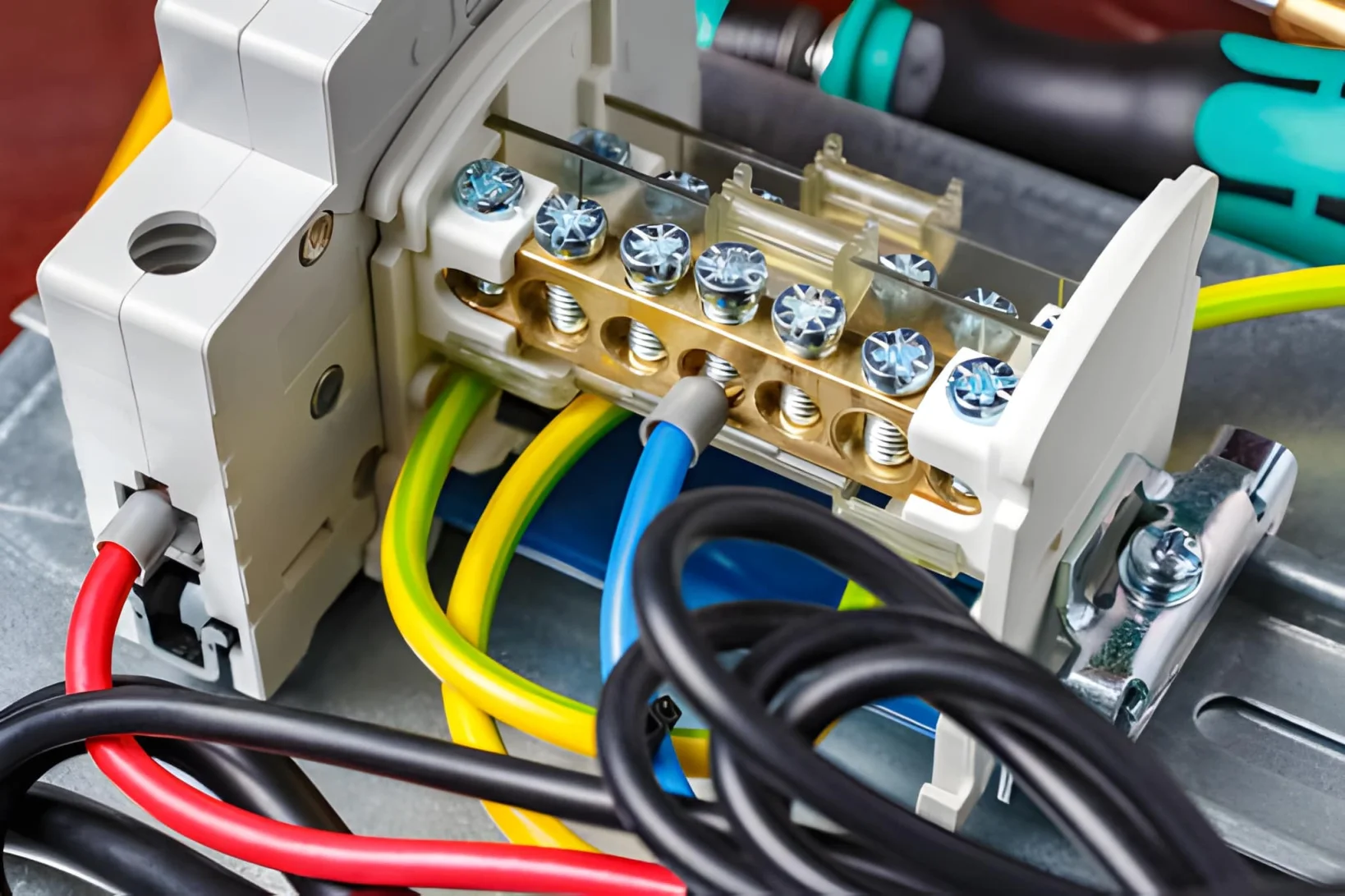

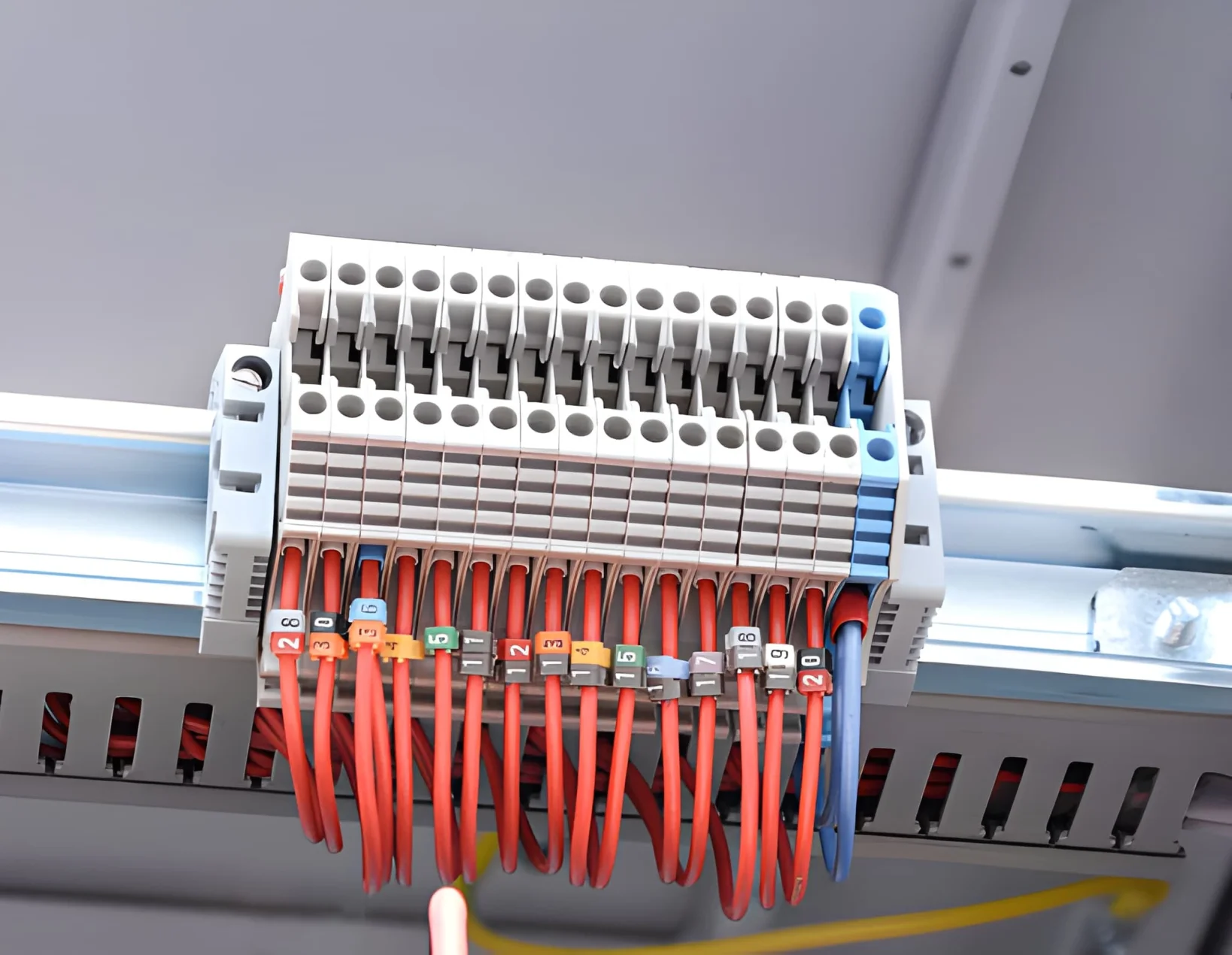

Terminal blocks for control panels providing secure wire connections, easy maintenance, and reliable signal and power distribution.
Terminal blocks for distribution boxes enabling neat wiring, safe power branching, and fast installation in industrial and commercial systems.
Terminal blocks for OEM equipment offering compact design, stable conductivity, and customized solutions for diverse electrical applications.
A Two Phase Connection Block is a fixed terminal component used to connect, distribute, and branch two-phase conductors within low-voltage electrical systems while maintaining standardized insulation and mechanical fixation.

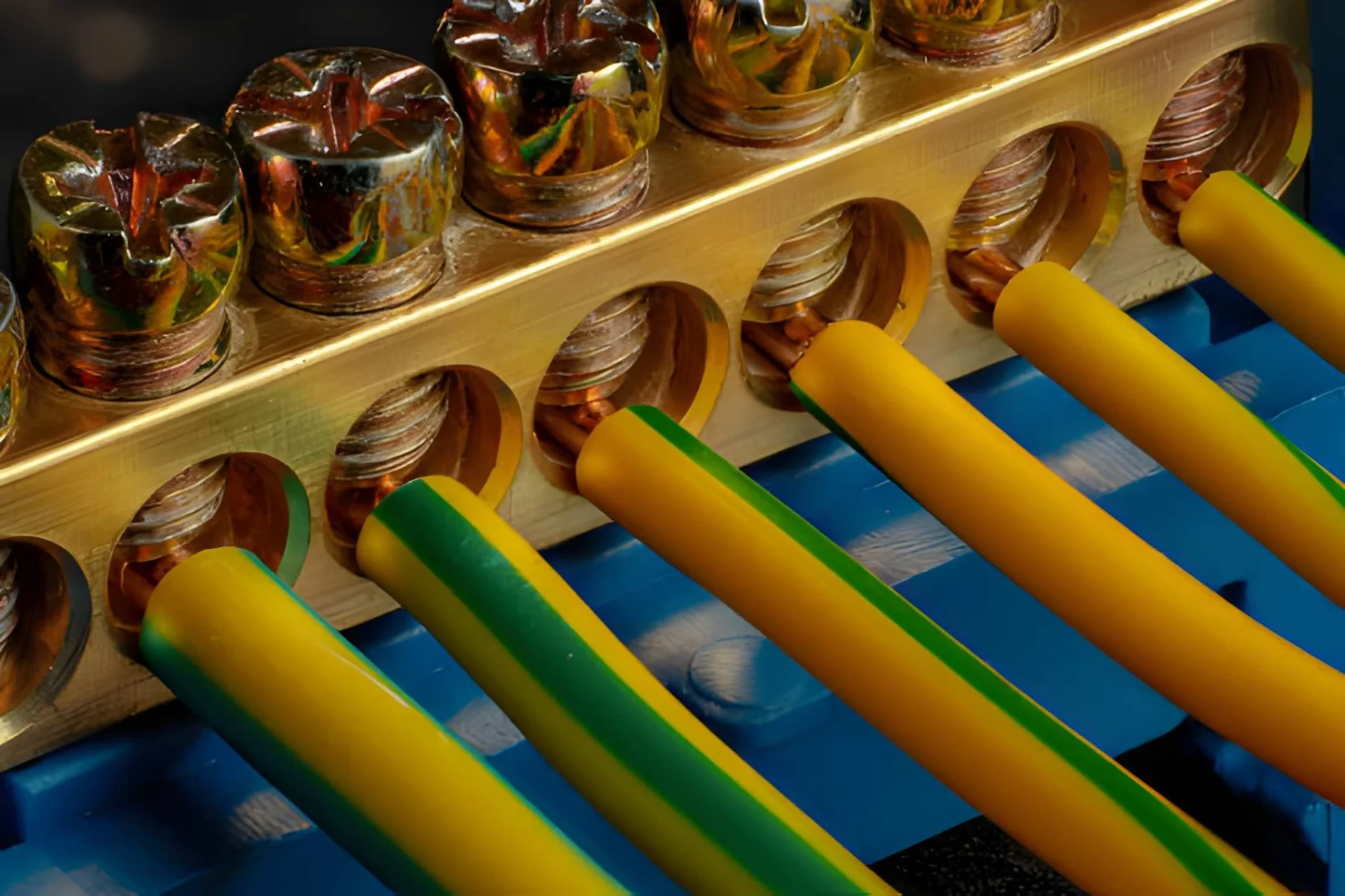

It provides dedicated input and output interfaces where conductors are clamped by torque-controlled screws onto brass conductive bars, creating a stable electrical path while keeping circuits physically separated inside the housing.
The input side accepts rigid wires of 10–35 mm² and flexible wires of 10–25 mm², while the output side supports multiple ranges including 10–35 mm², 10–25 mm², and 2.5–10 mm² depending on the interface group.
It can be mounted directly onto a 35 mm guide rail or fixed to a mounting plate using screws, allowing integration into different panel layouts and space constraints.
IEC 60947-7-1 defines mechanical strength, electrical clearance, creepage distance, and thermal performance requirements, ensuring that the Two Phase Connection Block can operate safely and reliably in industrial low-voltage systems.
