NaiHang electrical power distribution blocks offer safe compact design with 80 to 500 amps capacity and DIN rail mounting for efficient panel wiring.

Efficient Power Management for Industrial Control Panels

NaiHang electrical power distribution blocks deliver reliable, efficient power management tailored for industrial control panels. Designed to simplify complex wiring, these power distribution blocks streamline electrical connections, ensuring secure, organised power splitting from a single input to multiple outputs.

Built for high current terminal block applications, NaiHang solutions support both copper and aluminum conductors, enhancing versatility across varied industrial setups. Their compact, modular design reduces panel space while improving system reliability and safety.

Whether you’re integrating a DIN rail distribution module or a multi-pole power block, NaiHang’s products offer rugged performance, meeting global standards for SCCR rated power blocks. This means you get a robust electrical junction block that simplifies wiring, improves system uptime, and delivers touch-safe operation with finger-safe power distribution covers—ideal for industrial automation, HVAC, solar combiner boxes, and more.

In short, NaiHang power distribution blocks are your go-to choice for safe, scalable, and efficient electrical distribution modules in any industrial control panel environment.

Key Technical Specifications of Electrical Power Distribution Blocks

Understanding the specs of NaiHang electrical power distribution blocks is essential for ensuring they meet your industrial control panel needs. Here’s a quick rundown of the key technical details:

NaiHang distribution blocks come in single pole and multi-pole versions, ideal for splitting a single input into multiple output lines efficiently. Their high current terminal block design supports reliable power management without compromising safety.

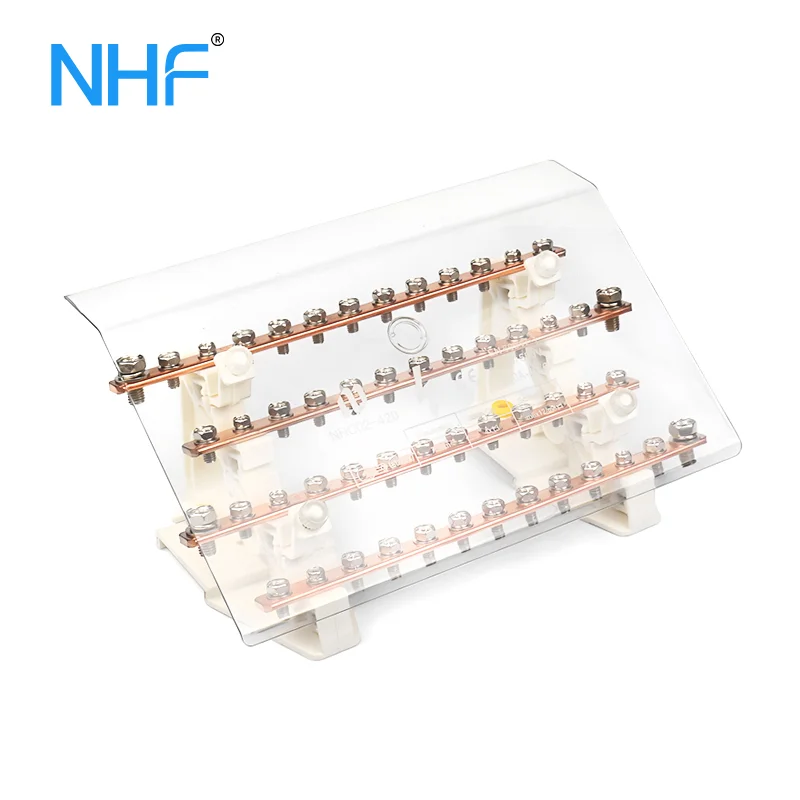

For detailed specs on specific models like the 160A or 400A versions, you can check the C02-160A four-phase electrical block and the C02-400A four-phase distribution block pages, which provide comprehensive technical information and application guidance.

Product Features & Design Benefits of NaiHang Electrical Power Distribution Blocks

NaiHang power distribution blocks stand out with a modular and compact design, perfect for optimizing space in industrial control panel setups. Their small footprint doesn’t compromise functionality, making them ideal as a single pole distribution block or as part of a multi-pole power block system.

Key safety and design features include:

These blocks function as a reliable electrical junction block or busbar terminal block, compatible with copper and aluminum connectors. The design supports various conductor sizes and multiple outputs from a single input—ideal for industrial automation or HVAC panels.

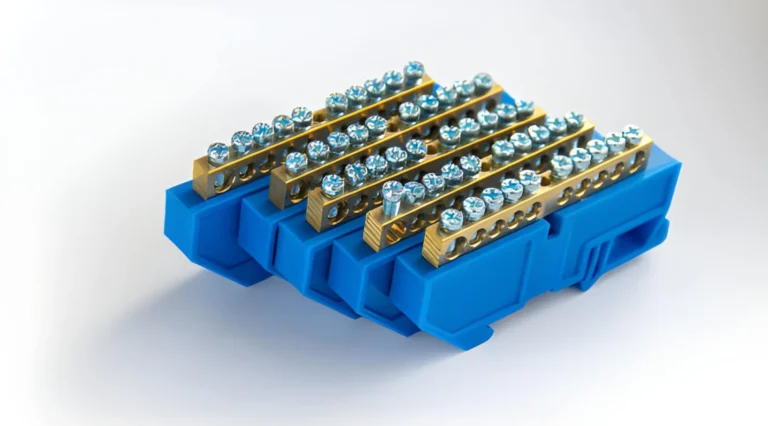

For integrated solutions, explore our neutral bar links featuring durable screw brass construction mounted on a DIN rail, such as the NHA15 neutral bar link and NHA11 neutral bar link, which complement the power distribution block lineup perfectly.

In , NaiHang’s power distribution blocks deliver robust durability, safety, and adaptability—making them essential components for efficient power distribution modules in industrial control panels.

Installation & Connection Guidelines

Proper installation is key to getting the most from your electrical power distribution block. When wiring, always ensure you follow the recommended configuration for your specific application. Use the correct conductor size, keeping within the accepted AWG/mm² cable range, to maintain optimal performance and safety.

For secure, reliable connections, it’s important to apply the right torque settings on the terminal screws. Over-tightening can damage the terminals, while under-tightening may lead to loose connections and potential power loss or overheating. We recommend consulting the product-specific torque values provided in the technical datasheets and applying a calibrated torque tool during installation.

Remember to use copper or aluminum connectors that are compatible with the distribution block to avoid corrosion and ensure long-term durability. The finger-safe power distribution blocks come with an IP20 cover that should remain in place to provide protection while allowing easy access for wiring.

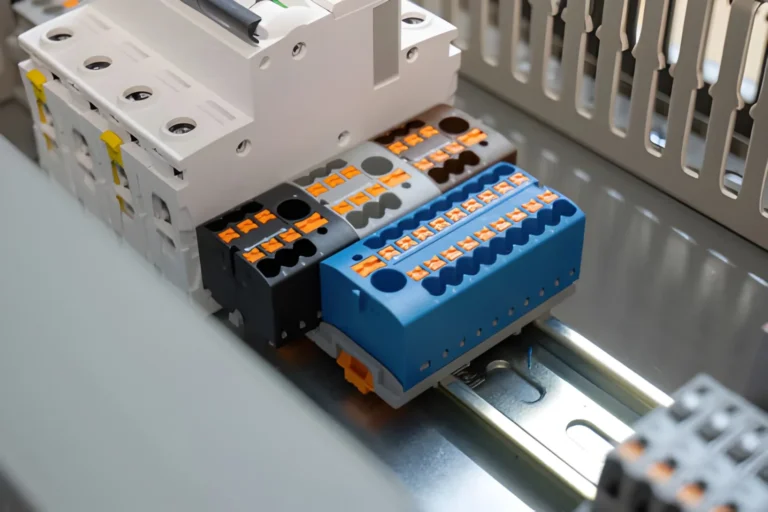

Versatile mounting options, including DIN rail and panel mounting, simplify integration into your industrial control panels. This ensures your terminal block splitter or busbar terminal block stays firmly in place, even under vibration or movement.

For detailed installation instructions, check out specific models like the four-phase connection box or the two-phase connection block from NaiHang’s reliable product lineup.

Applications of NaiHang Distribution Blocks

NaiHang electrical power distribution blocks are built to perform reliably across a wide range of industries. Their high current terminal block design and robust construction make them ideal for various demanding environments.

• Industrial Automation: Our distribution blocks ensure efficient power splitting and reliable connections for industrial control panel components, helping maintain smooth operation of automated machinery.
• HVAC Systems: The multi-pole power block and finger-safe power distribution features enhance safety and simplify wiring in heating, ventilation, and air conditioning systems.
• Solar/PV Combiner Boxes: With excellent SCCR ratings and compatibility with copper aluminum connector blocks, NaiHang power distribution modules are perfect for solar power setups, combining multiple inputs with secure busbar terminal blocks.
• Motion Control Systems: The compact DIN rail distribution module fits easily into control cabinets, offering consistent power input/output splitting for precise motor and motion control applications.

For specific configurations like four-phase systems, check out our reliable 125A four-phase distribution block or the 160A four-phase distribution block to meet your industrial power distribution needs.

Why Choose NaiHang as Your Manufacturer?

Selecting NaiHang for your electrical power distribution block needs means choosing quality, reliability, and flexibility. Here’s why we stand out:

Our commitment includes producing SCCR rated power blocks with finger-safe, flame-retardant housings. Whether you prefer DIN rail or panel mount options, NaiHang delivers versatile, high current terminal blocks designed for industrial control panel components.

Explore our reliable range including the UKK 400A single phase distribution block crafted to handle demanding electrical junctions with ease. Trust NaiHang for a copper aluminum connector block that fits perfectly in your system.

Downloads & Resources for NaiHang Electrical Power Distribution Blocks

To help you get the most out of our electrical power distribution blocks, we offer a comprehensive range of downloadable resources. Access detailed technical datasheets that cover current and voltage ratings, wire range capacities, and SCCR ratings. Our CAD drawings make it easy for engineers and designers to integrate our distribution blocks precisely into industrial control panel components. You’ll also find certification documents affirming our products meet rigorous IEC and UL standards.

These resources support smooth installation and ensure you select the right single pole or multi-pole distribution block for your specific needs. Whether you’re working on a DIN rail distribution module or a copper aluminum connector block, having accurate technical data at your fingertips simplifies your project planning and execution.

Explore our full collection of technical datasheets and design files to streamline your workflow and boost efficiency in power distribution setups. For example, check out the datasheets for the UKK 80A single-phase distribution block or SV70 hex screw single-phase distribution block for detailed product insights.

Frequently Asked Questions (FAQ)

Here are answers to some common questions about NaiHang electrical power distribution blocks:

Q: What types of wires are compatible with NaiHang power distribution blocks?

A: Our distribution blocks support a wide wire range, accommodating both copper and aluminum conductors. They fit cables from small to larger AWG sizes, ensuring flexible use in various industrial settings.

Q: What are the voltage and current ratings for these power blocks?

A: NaiHang distribution blocks typically handle up to 600V and are rated for high current loads as specified in the product datasheets. This makes them suitable for industrial control panels requiring reliable power management.

Q: Are the NaiHang distribution blocks UL listed or compliant with other certifications?

A: Yes, all products meet stringent IEC and UL standards to assure safety and performance. You can find certification details included in the product resources for each model.

Q: Can I use these distribution blocks with multi-pole configurations?

A: Absolutely. NaiHang offers single-pole and multi-pole power blocks designed for single input, multiple outputs applications, perfect for complex industrial setups.

Q: Is there a touch-safe or finger-safe option available?

A: Yes, many of our electrical junction blocks feature an IP20 finger-safe cover, providing enhanced safety during operation and maintenance.

If you need more detailed info, our technical datasheets and CAD drawings are available for download, helping you get the perfect fit for your application. For example, check out our single-phase distribution block with hex screw for a deeper dive into specs and installation guidelines.
